[Vasya]

Попытка написать фм для Рамы.
http://www.airwar.ru/enc/spyww2/fw189.html
https://en.wikipedia.org/wiki/Focke-Wulf_Fw_189_Uhu
Скорость немного не дотягивает до проспектных мурзилочных.

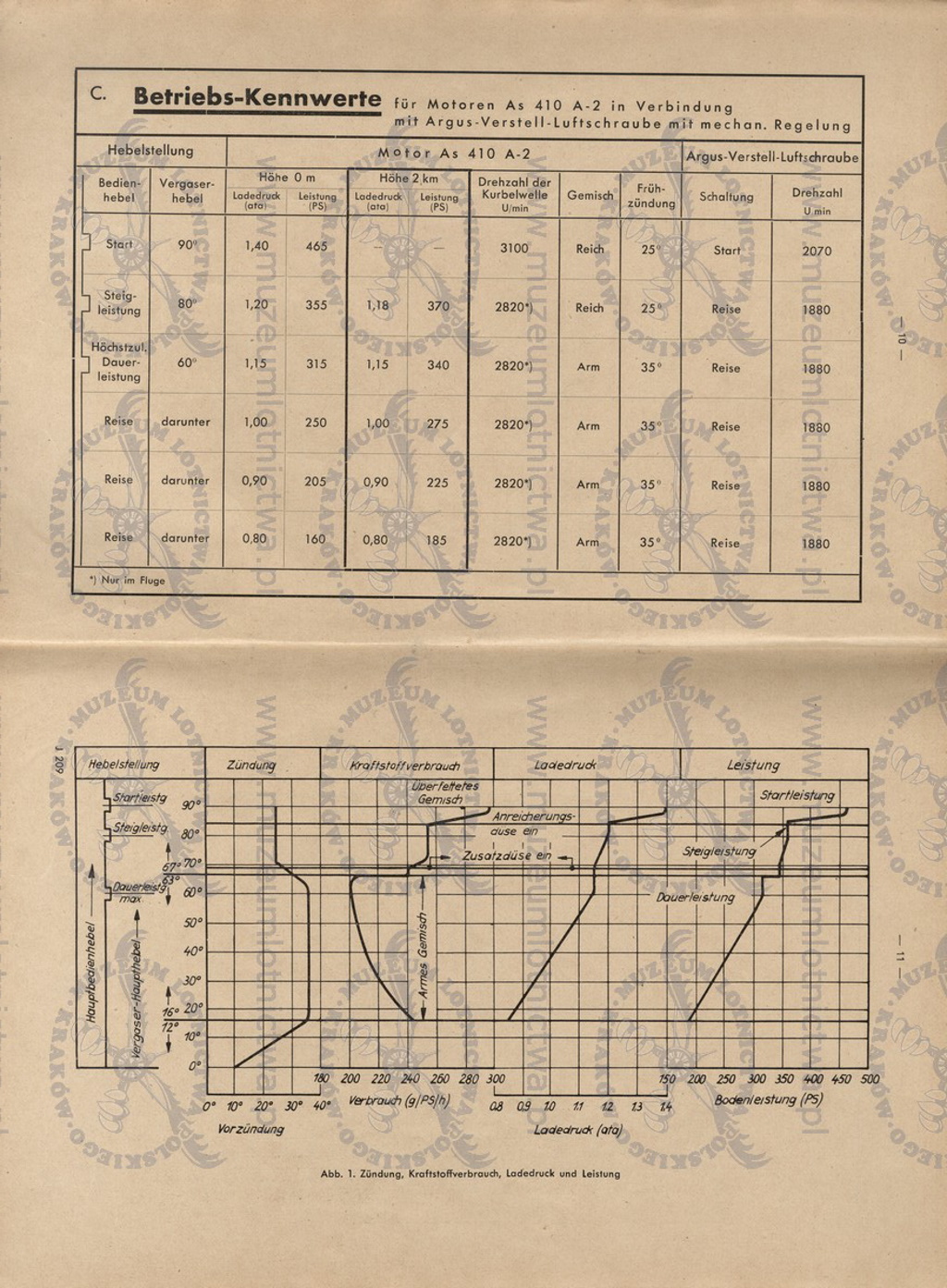

Получается 335 км. в час по спецификации с картинки - радиатор 4.
Высота 2400-2500 метров.
Фм Рамы - обновлена 7 июня 2022 года.
Профиль НАСА 23011/12

[Aircraft]
  Type 3
  Crew 3
  Wingspan 18.38
  Length 12.03
  Seaplane 0
  Canard 0
  Jet 0
  JetHiV 0
[Mass]
  Empty 2832.0
  TakeOff 3950.0
  Oil 50.0
  Fuel 328.0
[Controls]
  CAileron 1
  CAileronTrim 1
  CElevator 1
  CElevatorTrim 1
  CRudder 1
  CRudderTrim 1
  CFlap 1
  CFlapPos 3
  CDiveBrake 0
  CInterceptor 0
  CEngine 1
  CVectoredThrust 0
  CUndercarriage 1
  CLockTailwheel 1
  CStabilizer 1
  CArrestorHook 0
  CWingFold 0
  CCockpitDoor 0
  CDifferentialBrakes 1
  DefaultAileronTrim 0.005
  DefaultElevatorTrim 0.00
  DefaultRudderTrim 0.0865
[Squares]
  Wing 38.0
  Aileron 2.55
  Flap 4.34
  Stabilizer 5.67
  Elevator 2.36
  Keel 6.43
  Rudder 2.24
  Wing_In 6.10
  Wing_Mid 6.20
  Wing_Out 6.70
  FuselageCxS 0.00
  AirbrakeCxS 0.00
[Arm]
  Aileron 7.00
  Flap 2.50
  Stabilizer 7.35
  Keel 7.35
  Elevator 7.85
  Rudder 7.85
  Wing_In 1.20
  Wing_Mid 3.43
  Wing_Out 7.05
  Wing_V 5.0
  GCenter 0.05
  GCenterZ 0.00
  GC_AOA_Shift 0.45
  GC_Flaps_Shift 0.15
  GC_Gear_Shift -0.10
[Toughness]
  AroneL 100
  AroneR 100
  CF 40000
  Engine1 300
  Engine2 300
  Engine3 300
  Engine4 300
  GearL2 100
  GearR2 100
  Keel1 100
  Keel2 100
  Nose 100
  Oil 100
  Rudder1 100
  Rudder2 100
  StabL 100
  StabR 100
  Tail1 500
  Tail2 500
  Turret1B 100
  Turret2B 100
  Turret3B 100
  Turret4B 100
  Turret5B 100
  Turret6B 100
  VatorL 100
  VatorR 100
  WingLIn 400
  WingLMid 200
  WingLOut 200
  WingRIn 400
  WingRMid 200
  WingROut 200
  Flap01 100
  Flap02 100
  Flap03 100
  Flap04 100
[Engine]
  Engine0Family HIRTH(MOD):Fw-189
  Engine0SubModel Argus-As-410C/Fw-189A-2
  Engine1Family HIRTH(MOD):Fw-189
  Engine1SubModel Argus-As-410C/Fw-189A-2
[Gear]
  H 1.901417
  Pitch 9.210
  SinkFactor 800.0
  SpringsStiffness 0.6
  TailStiffness 0.3
[Params]
  CriticalAOA 18.50
  CriticalCy 01.40
  CxCurvature 00.71
  CxStraightness 00.11
  CriticalAOAFlap 17.00
  CriticalCyFlap 01.90
  SpinTailAlpha 17.00
  SpinCxLoss 0.06
  SpinCyLoss 0.03
  Vmin 160.0
  Vmax 320.0
  VmaxAllowed 500.0
  VmaxH 335.0
  HofVmax 2400.0
  VminFLAPS 130.0
  VmaxFLAPS 260.0
  Vz_climb 8.0
  V_climb 120.0
  T_turn 20.0
  V_turn 150.0
  K_max 13.0
  Cyo_max 0.15
  FlapsMult 1.0
  FlapsAngSh 4.0
  G_class_coeff 20.0
  G_class 8.0
  Range 865.0
  CruiseSpeed 190.0
  SensYaw 0.3
  SensPitch 0.3
  SensRoll 0.3
[Polares]
  lineCyCoeff 0.085
  AOAMinCx_Shift 0.503
  Cy0_0 0.15
  AOACritH_0 16.75
  AOACritL_0 -14.0
  CyCritH_0 1.31
  CyCritL_0 -0.84
  CxMin_0 0.028
  parabCxCoeff_0 4.2E-4
  Cy0_1 0.74016166
  AOACritH_1 16.40
  AOACritL_1 -20.0
  CyCritH_1 1.85
  CyCritL_1 -0.62
  CxMin_1 0.103
  parabCxCoeff_1 7.2E-4
  parabAngle 5.0
  Decline 0.010
  maxDistAng 35.0
  draw_graphs 0
  mc3 -16.712,-12.743,-40.268,-43.838,-48.483,-18.345,-10.693,-5.3299
  mc4 34.553,34.677,282.28,732.17,310.51,131.69,89.944,61.433
  mm 0.685,0.738,0.759,0.769,0.747,0.688,0.633,0.583
  mz 0.291,0.256,0.115,0.059,0.105,0.123,0.126,0.117
[SOUND]
  Engine fw_190
  Start e_start
  FeedType ELECTRIC
  Prop fw_prop

Мотор.

[Argus-As-410C/Fw-189A-2]
  Carburetor 3
  HorsePowers 465.0
  BoostFactor 1.0
  TowFactor 1.0
  Thrust 0
  PropMass 75.0
  cProp 1
  RPMMin 400.0
  RPMNom 3100.0
  RPMMax 3100.0
  RPMMaxAllowed 3300.0
  Reductor 0.667
  PropDiameter 2.2                 // 2.6
  PropAnglerType 1
  PropAnglerSpeed 0.10
  PropAnglerMinParam 2067.0
  PropAnglerMaxParam 3100.0
  PropPhiMin 21.0
  PropPhiMax 50.0
  PropAoA0 11.0
  Voptimal 280.0
  CompressorType 1
  CompressorSteps 1
  CompressorPAt0 0.40
  CompressorRPMCurvature 2.0
  CompressorPMax 1.40
  CompressorAltitude0 1000.0
  CompressorMultiplier0 1.04         // 483Hp
  CompressorRPMP0 2000.0
  CompressorRPMPMax 3100.0
  CompressorMaxATARPM 1.40
  CompressorSpeedManifold 0.5
  CompressorRPM0 400
  CompressorATA0 0.45
  CompressorRPM1 1000
  CompressorATA1 0.65
  CompressorRPM2 1800
  CompressorATA2 0.86
  CompressorRPM3 2000
  CompressorATA3 0.88
  CompressorRPM4 2400
  CompressorATA4 0.15
  CompressorRPM5 2820
  CompressorATA5 1.20
  CompressorRPM6 3100
  CompressorATA6 1.40
  DisP0x 2820
  DisP0y 0
  DisP1x 0
  DisP1y 50
  cRadiator 1
  TESPEED 0.010
  TWATERMAXRPM 61
  TOILINMAXRPM 80
  TOILOUTMAXRPM 95
  MAXRPMTIME 180
  MINRPMTIME 999
  TWATERMAX 105
  TWATERMIN 45
  TOILMAX 120
  TOILMIN 30

  SoundName bmw6
  PropName middle
  StartStopName std_e

Полный мод для патча 4.13.4.
https://drive.google.com/file/d/1GWn...ew?usp=sharing
В архиве ниже для работы в патче 4.12.2 с установленным модом
САС-Флиайб и для БАТ.
